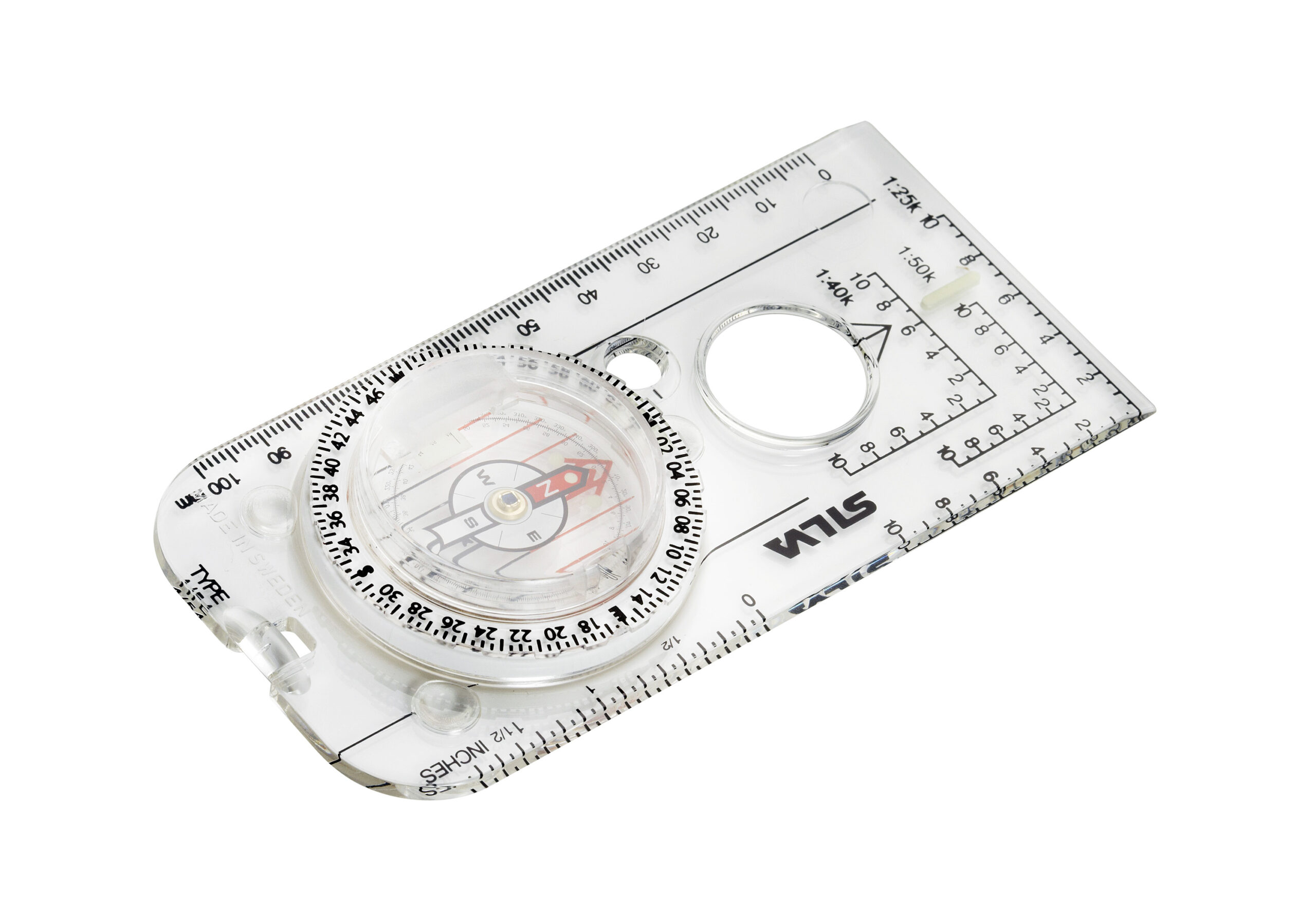

Kompass SILVA 54 6400/360
Probably the most resourceful compass in the world for artillery; target acquisition and command posts.

The Expedition 54 is a unique compass featuring both an optical precision sighting system and a SILVA 1-2-3 SYSTEM compass in the same unit, giving unbeatable precision and versatility in the field. Bearings can be taken with accuracy to within half a degree.

6400 mils on the graduation ring and 6400 mils and 360 degrees on the sighting scale. With luminous compound that need to be activated by daylight/flashlight etc.

Will give light up to 4 hours.
Accuracy›± 0,5° (8.9 mils)

Altitude use›5000m @-15 °C


Declination adjustment›No

Graduation›6400° / 360°

Illumination›4 hours after activation in light

Impact resistance›30g in XYZ directions and free fall from 1.5 m height into gravel

Magnifying lens›Yes


Patented red/black N/S lines in capsule›Yes

Resolution degrees / mils›Outer ring: 2/50 Precision sighting scale: 1/20

Scales›Baseplate: 1:25k, 1:40k, 1:50k, mm, inch

Settling time from 90° angle to complete rest›6 sec

Settling time from 90° angle within ± 3°›4 sec

Sighting System›Prismatic precision

Silicon friction feet›Yes

Size›126 x 60 x 16 mm

Temperature operating range›-40 to +60 °C

Type of compass›Silva 1-2-3 System combined with a Lensatic precision sighting compass

UTM position plotting scales (Romer scales)›1:25k, 1:40k, 1:50k

Water resistance›IP68 – (10 m)


Graduation›360° (each 2nd degree marked)

Patented red/black N/S lines in capsule›Yes

Scales›1:15k, mm

Size›120 x 60 mm
