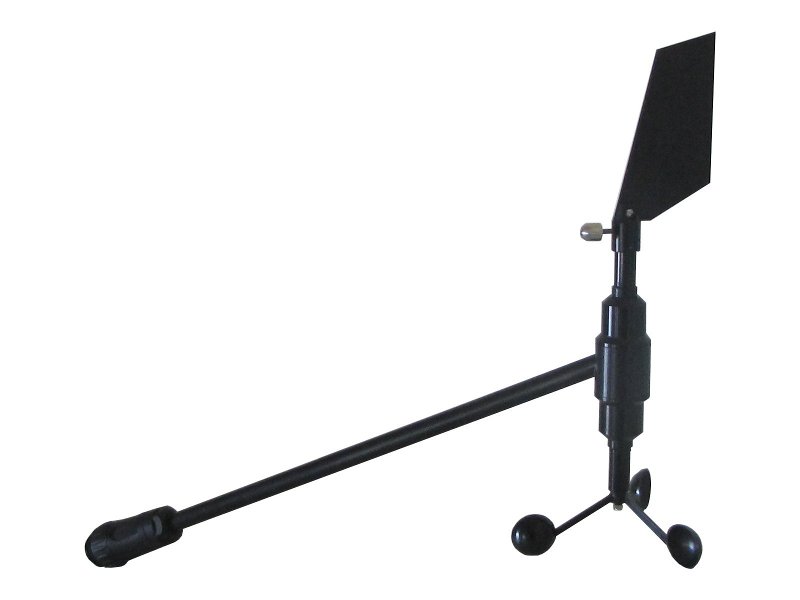

The new HR anemovane sensor is ever more accurate: better than a degree in angle measurement and around 1% for speed measurement linearity. It provides wind angle measurement over 360° and starts at speeds less than 2 knots. With easy installation and removal at the head of mast, it provides a corrected angle with a memorised value of the vane’s mechanical shift (which usually results from an installation at the head of mast). This correction is essential to correctly display apparent wind angle and true wind direction. This sensor is also available in a Carbowind version.

This sensor provides:
•true wind speed and angle in knots or metres/second if coupled to the speedometer log,
•air temperature in degree Celsius or Fahrenheit,
•VMG (Velocity Made Good) calculation

•Power supply: 10 to 16VDC
•Power consumption: 25mA – Angular resolution: 1°
•Temperature measurement: -10°C to +50°C
•Tightness: IP67; Bus cable: Ø 5.0 ± 0.3
•weight: 34 g/m – Operating temperature: -10°C to +50°C
•Storage temperature: -20°C to +60°C
