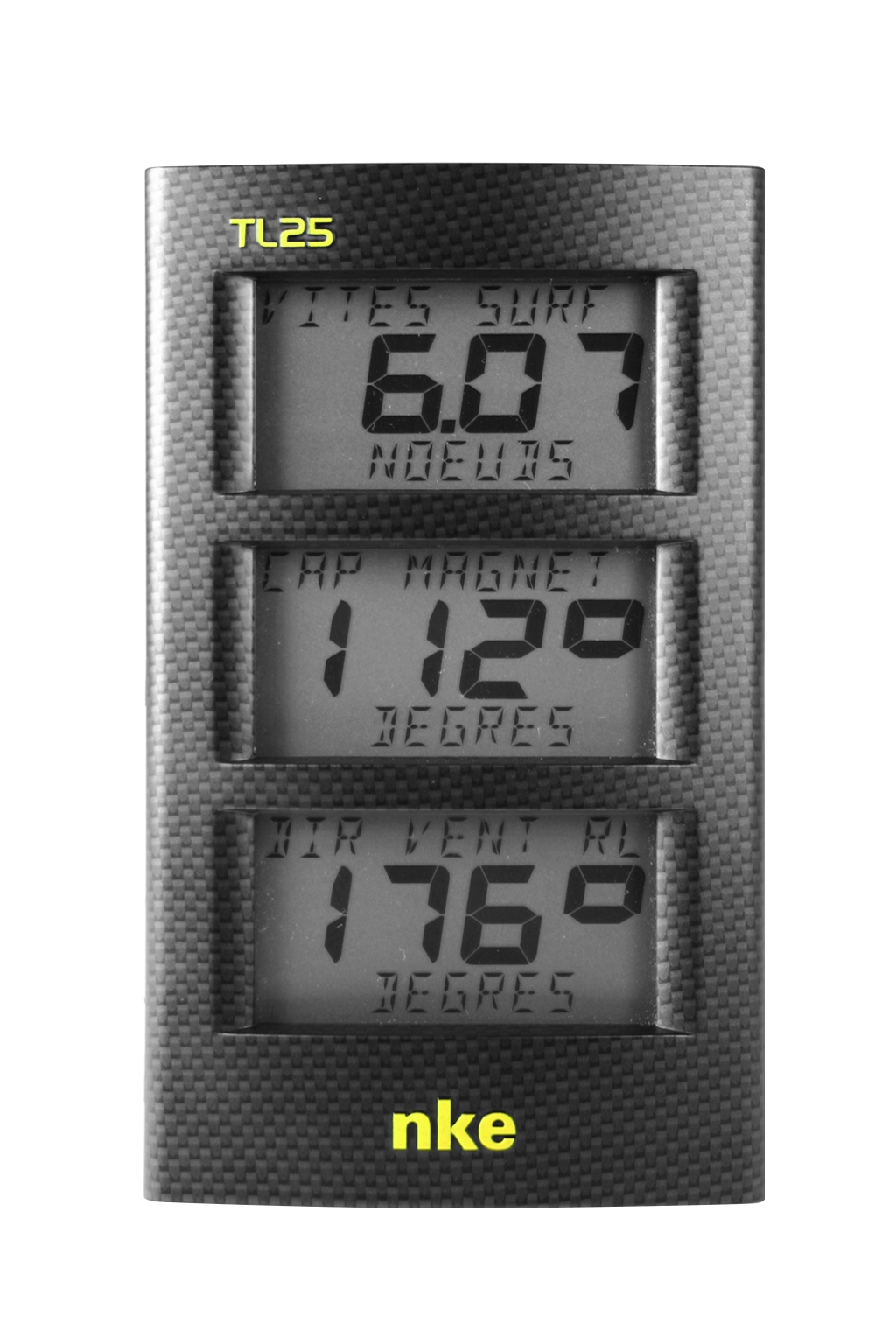

The Multifunction TL25 is a display that satisfies all your requirements:

Its three high definition LCD screens provide excellent readability and a wide viewing angle for the data displayed, day or night. (25mm high characters, red backlighting and various levels of brightness available). Its menus are available in 6 languages.

It is connected to the TOPLINE bus of your installation and displays all the channels available on the bus. A single TL25 together with its sensors is enough to provide all the regatta functions.

Mounted on the mast foot or on the deck house, it comes with a wired or wireless remote control to change the channels on display, to calibrate or to start the stopwatch.

•Display of target speed
•Display of close-hauled efficiency
•Display of optimum upwind angle
•Regatta stopwatch setup with 2 pre-programmable values

•Display of GPS data: position, heading and distance to course point, bottom speed and bottom heading
•Man-over-board function: display of heading and distance
•Display: average speed and maximum speed stored
•Quality back-lighting: 4 programmable levels.

•NMEA input for GPS connection
•Power supply: 10 to 16VDC
•Power consumption: 20mA without lighting, 70mA with lighting.
•Tightness: IP67
•Weight: 1.3kg, cable included
•Dimensions: height = 260mm; width = 156mm; depth = 45mm
•Operating temperature: -10°C to +50°C
•Storage temperature: -20°C to +60°C
•Horizontal viewing angle: greater than 120°
•Vertical viewing angle: greater than 90°
•Height of the characters displayed: 25mm for the channel, 10mm for the title and the unit.
•Cable length: 6.10m

See also
•Aluminium support for one TL25 – brushed (ref.: 31-33-003) – Black (ref. :31-33-046)
•Glass fibre support for one TL25 – White (ref.: 31-33-015) – Black (ref.: 31-33-045)
•Glass fibre support for two TL25s – White (ref.: 31-33-016) – Black (ref.: 31-33-044)
•Wired remote control, ref: 90-60-245
•Radio remote control for multifunction units (1 receiver + 1 transmitter), ref: 98-60-258

2 colours available:
•Multifunction TL25 white, ref.: 90-60-244
•Multifunction TL25 carbon: ref.: 90-60-489
